Digitalinx (DL-HDE100) HDMI Over HDBaseT 100m Complete Extender Set
SRP:
£395.00
(£329.17 + VAT)
Out of stock
SKU
DL-HDE100

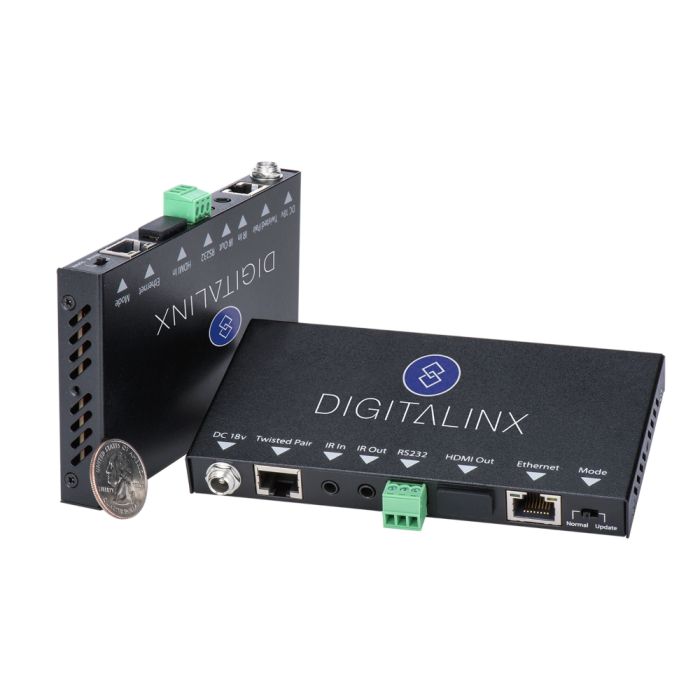

Digitalinx (DL-HDE100) HDMI Over HDBaseT 100m complete extender Set with flexible power, RS232 & IR control, and ethernet
he DigitaLinx DL-HDE100 extender set transmits HDMI (1080p, 4Kx2K (UHD) & 3D) including HDCP 2.2, Ethernet, bidirectional IR, and RS232 up to 100 meters away using a single twisted pair cable.
Built-in surge protection and diagnostic LEDs ensure hassle-free and robust installations. Flexible power design allows the units to be powered at either the TX or RX end, and only one power supply is required. The 12 volt power supply is secured with a screw-on connector to prevent the power from being accidentally disconnected.
The DL-HDE100 is sold only as a set. All accessories are included including two IR emitters, two IR receivers, and two pairs of mounting brackets with screws. The individual transmitter and receiver are not compatible with other HDBaseT devices due to proprietary PoE circuitry.
eatures & Benefits
- HDMI transmission up to 330 feet (100m)
- 1080p, 4Kx2K (UHD) & 3D compatible
- CEC supported
- Built-in surge protection
- Diagnostic LEDs
- HDCP 2.2 compliant
- Bidirectional Wideband IR and RS232 pass-through
- 100-BaseT Ethernet pass-through
- Flexible power design (use power supply at TX or RX)
- Locking power connector (power supply included)
Applications
- Uses any Cat6 or greater twisted pair cabling
- Extension of HDMI and control signals
- Limited access to power for extenders on both ends
- Ideal for Digital Signage, Home Theater, Commercial Video
| Product Line: | DL-HDE100 |
|---|---|
| I/O Connections | |
| HDMI | One (1) HDMI Type A Receptacle |
| Twisted Pair | One (1) 8P8C port (Shielded RJ45) |
| Ethernet | One (1) 8P8C port (Shielded RJ45) |
| IR Input | One (1) 3.5 mm TRS Jack |
| IR Output | One (1) 3.5 mm TS Jack |
| RS232 | One (1) 3-Pole Euroblock connector |
| 18V DC Power | One (1) 5.5 mm Outside Diameter, 2.1 mm Inside Diameter Barrel (Locking) |
| Supported Audio, Video and Control | |
| Maximum Video Compatibility | 100 m: Deep Color 48/36/30/24 Bit at 1080p, 3D, and 4k x 2k (UHD) up to 30 Hz: RGB, YCbCr 4:4:4, YCbCr 4:2:2; up to 60 Hz: YCbCr 4:2:0 |
| Video Compliance | HDMI, HDCP 2.2, and CEC (Consumer Electronics Control) |
| Embedded Audio | Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio |
| Input DDC Signal | 5.0 volts p-p (TTL) |
| Input Video Signal | 0.5 to 1.0 volts p-p |
| Maximum HDMI Distance | 5 m (pre-made cable) |
| IR Carrier Frequency Range | 33-55kHz at 5 volts |
| Ethernet | 100BaseT |
| RS232 Baud Rate | Up to 115200 baud |
| HDBaseT Signal Characteristics | |
| Maximum Distance | 100 m |
| Cable Requirements | Solid core shielded Category 5e, Category 6 or greater with TIA/EIA-568B crimp pattern |
| Bandwidth | 10.2 Gbps |
| Gain | 0 dB – 10 dB at 100 MHz |
| Resolution Range | 800x600 – 1920x1200 |
| Signal to Noise Ratio (SNR) | > 70 dB at 100 MHz over 100 m |
| Return Loss | < -30 dB at 5 KHz |
| Total Harmonic Distortion (THD) | < 0.005% at 1 KHz |
| Min-Max Signal Level | < 0.3 V – 1.45 Vp-p |
| Differential Phase Error | ±10° at 135 MHz over 100 m |
| Chassis and Environmental | |
| Enclosure | Painted steel |
| Dimensions | 135 mm x 74 mm x 15 mm (5.31 in x 2.91 in x 0.59 in) |
| Shipping Weight | 0.82 kg (1.8 lbs) |
| Operating Temperature (Environment) | 0° to +40° C (+32° to +104° F) |
| Operating Temperature (Chassis) | 31° C (88° F) (S); 38° C (100° F) (R) |
| Operating Humidity (Environment) | 20% to 90%, Non-condensing |
| Storage Temperature (Environment) | -10° to +60° C (+14° to +140° F) |
| Storage Humidity (Environment) | 20% to 90%, Non-condensing |
| Power, ESD, and Regulatory | |
| Maximum Power Consumption | 3 watts (S), 6 watts (R) |
| Power Supply | 18V DC |
| ESD Protection | 15kV |
| Regulatory | CE, RoHS |
| Other | |
| Standard Warranty | 2 Years |
| Diagnostic Indicators | Power, Status, Link, and HDCP LEDs |
| Included Items | Installation Guide, power supply, US Power cord, IR emitters (2 ea), IR receivers (2 ea), mounting “L” brackets (4 ea), mounting screws (4 ea) |
