Digitalinx DL-HDM44 HDMI Matrix Switcher with 4K Support (4 IN 4 OUT)

Digitalinx DL-HDM44 HDMI Matrix Switcher with 4K Support (4 IN 4 OUT)

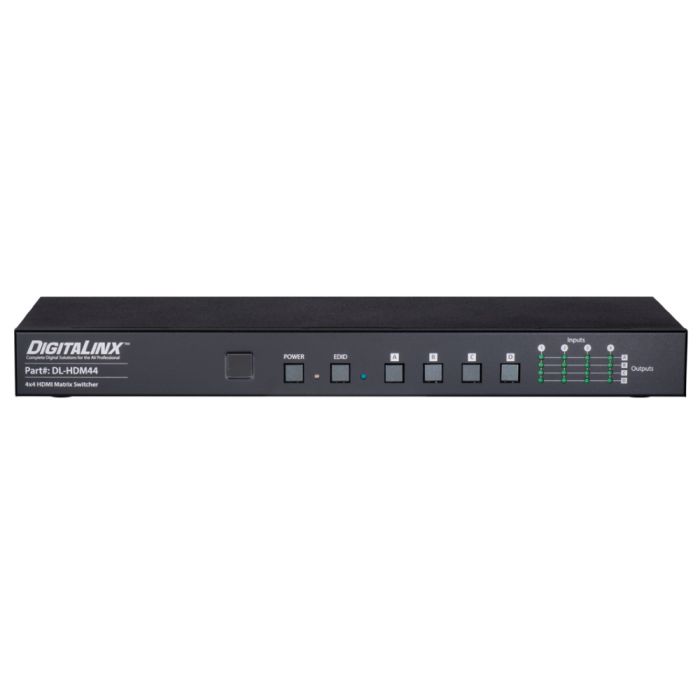

The Digitalinx DL-HDM44 is a four input by four output HDMI matrix switcher. The DL-HDM44 supports up to 4K video resolutions, Deep Color, and 3D video.

The DL-HDM44 can be controlled via front panel buttons, front panel IR, external IR, RS232, and through a web browser when the matrix is connected to a network. The matrix includes a simple IR remote control to allow IR switching. The EDID settings for the matrix, either 1080p with stereo audio or the EDID of the display on Output A, are toggled by a button on the front of the matrix.

To extend the inputs or the outputs of the DL-HDM44 beyond the 5 meter cable limitation, please use the DL-HD70 or DL-HDE100.

Features & Benefits

• Four HDMI inputs
• Four HDMI outputs
• Front panel, IR, and RS232 control
• Control page and configuration accessible from web browser
• EDID management
• Supports 3D and 4k Video

Applications

• HDMI multimedia distribution
• Digital signage, restaurant and bar, residential HDMI
