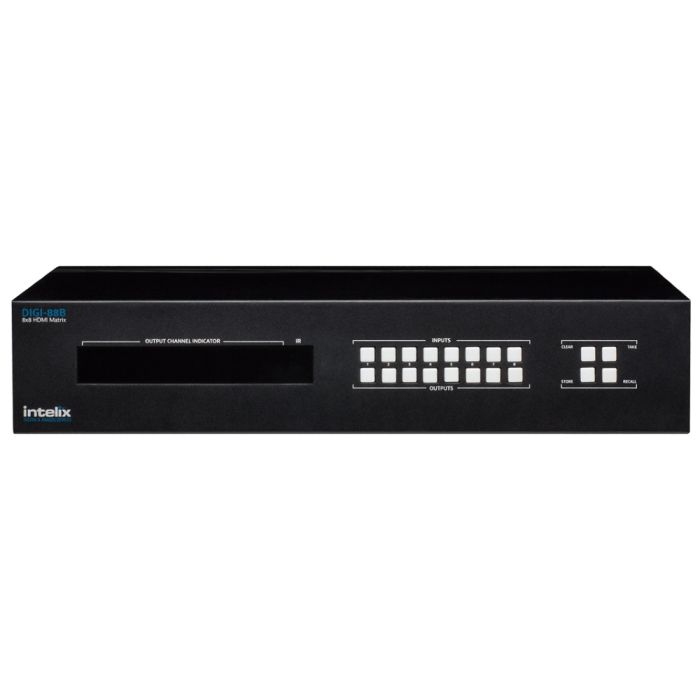

Intelix 'DIGI-88B' HDMI/HDBaseT Matrix Switcher - 8 Input x 8 Output

The Intelix DIGI-88B is an eight input by eight output HDBaseT HDMI matrix switcher. The Intelix DIGI- 88B matrix improves the ease of installation similar to previous Intelix HDMI matrix switchers.

The DIGI-88B has dual outputs on each output port, allowing the same signal to be routed to the HDMI connector and a remote destination with an HDBaseT receiver. The HDBaseT ports support 1080p HDMI video with audio, bi-directional wide-band IR, matrix control via IR, and HDCP. The matrix is HDMI compatible and supports up to 2K resolutions, Deep Color, and full 3D capabilities.

The DIGI-88B can be controlled via front panel buttons, front panel IR, external IR, remote IR through HDBaseT extenders, RS232, RS485, and Ethernet. The matrix includes a simple IR remote control to allow IR switching. This IR remote control can be learned into universal remotes and IR based control systems. The matrix also features a full command set for RS232 and Ethernet control with third party control systems.

Features & Benefits

  • 8 HDMI input by 8 HDMI output + 8 HDBT outputs
  • HDMI & HDCP compliant
  • Supports 1080p / 1080i / 3D / All HDMI Audio (No ARC)
  • Bidirectional Wideband InfraRed (IR) signal distribution
  • Control via front panel, IP, RS-232, or IR protocols
  • 8 Routing presets activated from front panel
  • Rack-Mount and Bottom Panel Feet included
  • Includes wireless remote control, IR eyes, and IR emitters

Applications

  • HDMI multimedia switching and distribution
  • 1080p up to 70m (230 ft) over standard Cat cable with compatible receive units
  • Digital signage, restaurant and bar, residential HDMI
Product Line:  DIGI-88B
I/O Connections
HDMI Inputs Eight (8) HDMI Type A Receptacle Connector (1 per input)
HDMI Outputs Eight (8) HDMI Type A Receptacle Connector (1 per output)
HDBaseT Outputs Eight (8) 8P8C port (Shielded RJ45) (1 per output)
IR Input Eight (8) 3.5 mm jack (TRS) (1 per input)
IR Output Eight (8) 3.5 mm jack (TS) (1 per output)
AC Power Inlet IEC C14
Control, Rear Panel RS232 via DE-9, RS485 via 8P8C, TCP/IP via 8P8C, IR via 3.5mm TRS
Control, Front Panel Push Button, IR
DIP Switch Four switch DIP
Supported Audio, Video, and Control
HDTV Video Resolutions 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
VESA Video Resolutions Up to 1920x1200
Maximum Video Compatibility at 70 m Deep Color 36/30/24 Bit at 1080p
Maximum Video Compatibility at 40 m Deep Color 48 Bit at 1080p and 3D
Supported 3D Formats Field Alternative (interlaced), Frame Packing, Line Alternative Full, Side-By-Side Half, Side-By-Side Full, 2D + Depth, 2D + Depth + Graphics + Depth
DIP Switch Modes 1080i/2.0, 1080p 3D/2.0, 1080p/2.0, 1080p/5.1, 1080p/7.1, Copy and Use EDID from Display
Video Compliance HDMI, HDCP, and CEC (Consumer Electronics Control)
Embedded Audio Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio
Input DDC Signal 5.0 volts p-p (TTL)
Input Video Signal 0.5 to 1.0 volts p-p
IR Carrier Frequency Range 33-55kHz at 5 volts
Ethernet 100BaseT
RS232 Baud Rate 9600 baud
HDBaseT Signal Characteristics
Maximum Distance 70 m
Cable Requirements Solid core shielded Category 5e, Category 6 or greater with TIA/EIA-568B crimp pattern
Bandwidth 10.2 Gbps
Gain 0 dB – 10 dB at 100 MHz
Signal to Noise Ratio (SNR) > 70 dB at 100 MHz over 100 m
Return Loss < -30 dB at 5 KHz
Total Harmonic Distortion (THD) < 0.005% at 1 KHz
Min-Max Signal Level < 0.3 V – 1.45 Vp-p
Differential Phase Error ±10° at 135 MHz over 100 m
Chassis and Environmental
Enclosure Painted Steel
Dimensions 440 mm x 340 mm x 100 mm (17.32 in x 13.4 in x 3.91 in)
Rack Spacing 2 RU
Shipping Weight 6.85 kg (15.1 lbs)
Operating Temperature 0° to +40° C (+32° to +104° F)
Operating Humidity 20% to 90%, Non-condensing
Storage Temperature -10° to +60° C (+14° to +140° F)
Storage Humidity 20% to 90%, Non-condensing
Power, ESD, and Regulatory
Power Supply Input 100-240VAC
Power Consumption 70 watts (max)
ESD Protection 15kV
Regulatory CE, RoHS
Other
Warranty 2 years
Diagnostic Indicators LCD output status and power LEDs
Included Accessories Installation Guide, IR Remote, IR Emitter (8 ea), IR Receiver (8 ea), USB/RS232 adaptor, US Power Cable, Mounting Brackets with screws, Chassis Feet
Compatible Receivers (A/V Only) DIGI-HD70-R
Compatible Receivers (A/V and IR) DIGI-HDE-R, DIGI-HD60C-R
