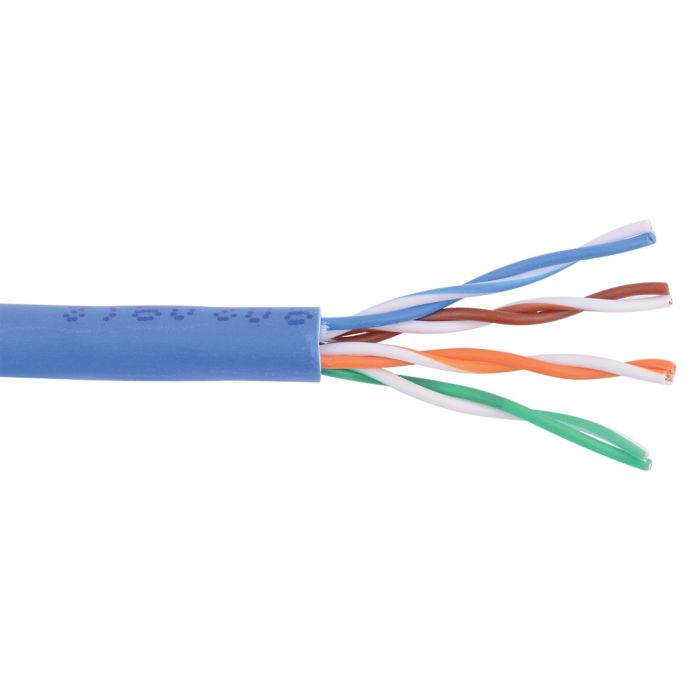

Liberty (24-4P-L5-HT) Hometrax CAT5e Data Cable 1000ft
Features and Benefits
- Solid annealed bare copper conductors
- High density polyethylene insulation
- 4 pairs twisted in varying lays and cabled
- Flame rated PVC jacket
- TIA/EIA-568-C Category 5e and tested to 350 MHz
- NEC CMR, CEC CMR FT4, RoHS compliant
- 1000 foot nested boxes
Applications
- Horizontal LAN 10/100/1000BaseT Ethernet
- Audio, video, infrared, IP control
- Balun infrastructure, voice, voice over IP
- PoE, HDBaseT, analog and digital media
| Description | 4 pair 24 AWG solid, twisted, and unshielded cable NEC type CMR and CEC type CMR FT4. Third party verified to ANSI/TIA-568C Category 5e performance. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800. |
| Conductor | 24 AWG Solid annealed bare copper conductors Diameter: 0.0205" | 0.51mm |
| Electrical | DC resistance: ≤ 28.6 Ω / 1000’ | 93.81 Ω/KM DCR Unbalance: ≤ 5% Capacitance: 17.0 pF/FT | 56.0 pF/M Impedance: 100 ± 15 Ω Propagation Delay (Skew): 45ns/100m MAX Velocity of Propagation: 68% Voltage rating: 300V Pair to ground capacitance Unbalance: ≤ 330 pF/100M Maximum current: 1.4A@25°C |
| Insulation | High density polyethylene Wall thickness: 0.0075" | 0.19mm Diameter: 0.035" | 0.89mm |
| Regulatory | ANSI/TIA-568-C Category 5e NEC: CMR 75°C CEC: CMR FT4 60°C EU RoHS-2 2011/65/EU Compliant |
| Color Code | Pair 1: Orange, White/orange stripe Pair 2: Blue, White/blue stripe Pair 3: Green, White/green stripe Pair 4: Brown, White/brown stripe |
| Packages | Reel: 1000’ | 305M Nested Box: 1000’ | 305M Weight: 26 Lbs/1000’ | 39 Kg/KM |
| Assembly | Pairs twisted in varying lay lengths with co-extruded like striped conductor 4 twisted pairs cabled on a common axis |
| Installation | Pull Tension: 25 Lbs | 111 N Bend radius: 2.19" | 56mm unloaded Bend radius: 4.38 | 112mm loaded |
| Construct | Ripcord under jacket |
| Applications | Riser LAN systems 10/100/1000BaseT Riser Phone, Voice, Video over IP and security video BALUN support and media infrastructure Infrared, audio |
| Shield | N/A |
| Performance | LAN: 300 feet Passive Baluns up to 2500 feet |
| Jacket | Flame rated polyvinyl chloride Colors: Blue, White, Green, Gray Wall thickness: 0.025" | 0.635mm Diameter: 0.219" | 5.57mm |
| Final Outside Diameter (inches) | 0.219 |
