Liberty (24-4P-L6ASH) Hometrax CAT6A Data Cable 1000ft

SRP: £479.00 (£399.17 + VAT)

Out of stock

SKU

24-4P-L6ASH

Skip to the end of the images gallery

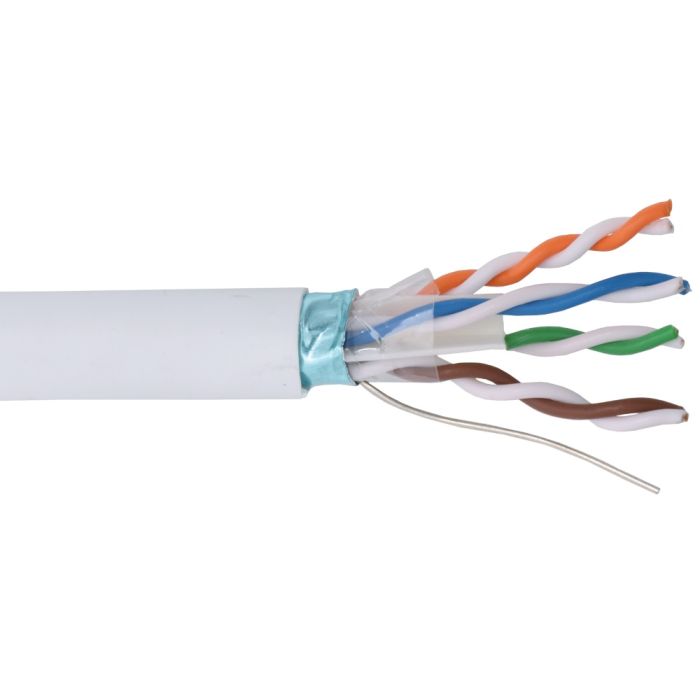

main product photo

Skip to the beginning of the images gallery

Liberty (24-4P-L6ASH) Hometrax CAT6A Data Cable 1000ft

Features and Benefits

Solid annealed bare copper conductors
High density polyethylene insulation
4 pairs twisted in varying lays and cabled
Overall aluminum/poly foil shield with drain
Flame rated PVC jacket
TIA/EIA-568-C Category 6A
NEC CMR, CEC CMR FT4, RoHS compliant
1000 foot spools

Applications

Horizontal LAN 10/100/1000/10GBaseT ethernet
Audio, video, infrared, IP control
Balun infrastructure, voice, voice over IP
PoE, HDBaseT, analog and digital media

Description	4 pair 23 AWG solid, twisted, and shielded cable NEC type CMR and CEC type CMR FT4. Third party verified to ANSI/TIA-568C Category 6A performance. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.
Conductor	23 AWG Solid annealed bare copper conductors Diameter: 0.0226" \| 0.574mm
Electrical	DC resistance: ≤ 20.3 Ω / 1000’ \| 66.6 Ω/KM DCR Unbalance: ≤ 5% Capacitance: 17.0 pF/FT \| 56.0 pF/M Impedance: 100 ± 15 Ω Propagation Delay (Skew): 45ns/100m MAX Velocity of Propagation: 68% Voltage rating: 300V Pair to ground capacitance Unbalance: ≤ 330 pF/100M Maximum current: 1.4A@25°C
Insulation	Polyolefln Wall thickness: 0.009" \| 0.24mm Diameter: 0.042" \| 1.06mm
Regulatory	ANSI/TIA-568-C Category 6A NEC: CMR 75°C CEC: CMG FT4 60°C EU RoHS-2 2011/65/EU Compliant
Color Code	Pair 1: Orange, White/orange stripe Pair 2: Blue, White/blue stripe Pair 3: Green, White/green stripe Pair 4: Brown, White/brown stripe
Packages	Reel: 1000’ \| 305M Weight: 44 Lbs/1000’ \| 66 Kg/KM
Assembly	Pairs twisted in varying lay lengths Each pair in a polyethylene X separator interstice
Installation	Pull Tension: 25 Lbs \| 111 N Bend radius: 2.96" \| 76mm unloaded Bend radius: 5.92" \| 152mm loaded
Construct	100% Polyester tape binder Ripcord under jacket
Applications	Riser LAN systems 10/100/1000BaseT and 10GBaseT Riser Phone, Voice, Video over IP and security video BALUN support and media infrastructure High Speed digital media, HDMI
Shield	100% aluminum/polyester tape foil in 24 AWG solid tinned copper drain
Performance	LAN: 300 feet Passive Baluns up to 2500 feet
Jacket	Flame rated polyvinyl chloride Colors: White Wall thickness: 0.022" \| 0.56mm Diameter: 0.296" \| 7.52mm
Final Outside Diameter (inches)	0.296

24-4p-l6ash_specification.pdf
