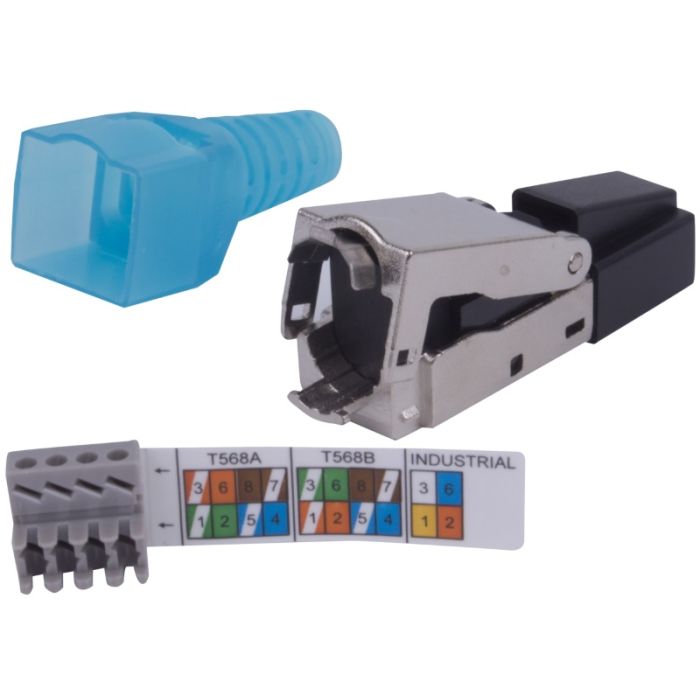

Liberty's Connectec Category 6A/7 Shielded 8P8C Field RJ45

Liberty's Connectec Category 6A/7 Shielded 8P8C Field RJ45

The Revolutionary Category Cable Termination System

From the company that revolutionized the compression connector industry and brought you ConnecTec and ConnecTec2. The best of all worlds, ConnecTec Cat delivers a simple to terminate, flexible, and solid category cable connection… all at the price point you need for your entire system. ConnecTec Cat’s high-quality collection of plugs, jacks, and keystone inserts are fully ANSI/TIA-568 Compliant & UL approved.

A Complete Connection Collection

ConnecTec Cat is ready to support shielded and unshielded category cable needs, offering Cat5e, 6, 6A &7 connectors and tools that makes 90 second successful and high-quality terminations a reality!! ConnecTec Cat is ready to support daily needs in Data Centres, AV, HDBaseT, LAN, and many other applications.

Key Features and Benefits:

• Easy to Terminate: less than 1-2 minutes on average!
• Priced Right: Over 50% less than competitive solutions
• ANSI/TIA-568 Compliant
• Keystone-Compliant jacks
• Tried and true 180° termination, can be terminated with or without tools
• Plugs re-usable up to 5 times
• UL Approved

• Male 8P8C Modular RJ45 Plug
• IDC Contact Style for 24 to 22 AWG TWP Cabling
• No Special Tools required, just cable prep tools
• 500 MHz Sweep Test and Class EA Certification
• Category 6, 6A, 7 F/UTP, SF/UTP, F/STP, S/FTP Formats
• Strain relief boot trimmable to cable diameter

Applications

• LAN 10/100/1000/10GBaseT, High Speed Balun, Digital Media
• Audio, InfraRed (IR), RF Video, Voice, Voice over IP
• Any and All TWP pair cable up to 8.5mm in diameter
