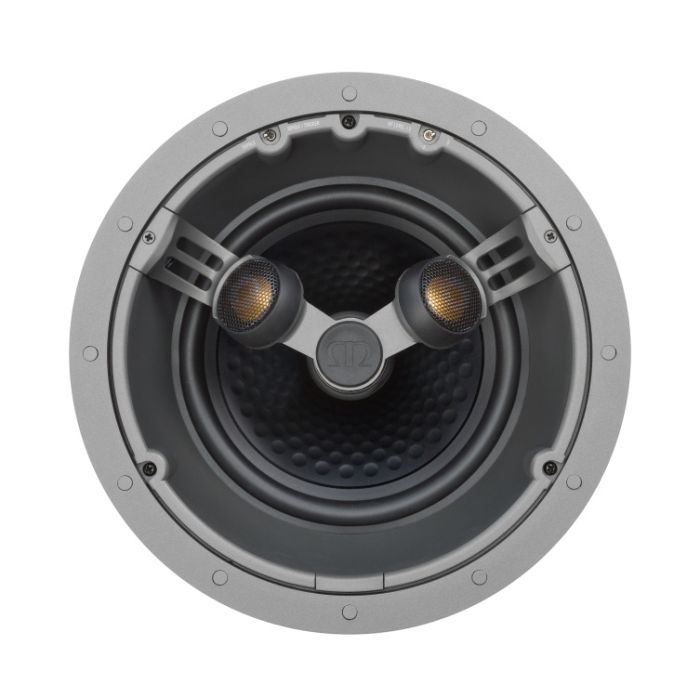

Monitor Audio C380-FX Rear Effects Ceiling Speaker
Monitor Audio C380-FX Rear Effects Ceiling Speakers feature surround mode selection of dipole (diffuse sound) or bipole (direct sound) operation for super-discreet home theatre sound. Incorporates an 8-inch C-CAM® RST® bass driver 8-inch C-CAM bass driver and dual 1-inch C-CAM gold dome tweeters mounted at a precise fixed-angle for optimised performance. Also includes a 12-volt trigger input for automatic surround mode switching.
- Dual tweeter configuration for use in di-pole or bi-pole mode.
- RST bass driver and C-CAM tweeters, providing coherent tonal balance and sonic signature across the entire audio frequency spectrum.
- High overall efficiency.
- High frequency level adjustment (+/- 3dB).
- Timbre-match with GS, RS-CP, in-ceiling/wall and Gold Signature, Silver RS hi-fi speakers.
- Our innovative Tri-Grip® fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
- Magnetic and easily removable steel grille.
- All models are paint-able to blend with the living environment. Additional scrim material is provided for trouble free painting.
- All models use fire retardant materials specified to UL-94 VO rating.
- All models are splash and humidity proof for installation in shower rooms or pool areas.
- All models feature dust protection covers that are designed to prevent the ingress of dirt or dust into the driver and crossover.
Monitor Audio Warranty:
Monitor Audio Custom Installation Speaker Series carry a Lifetime Warranty
We are authorised Monitor Audio retailers. Brand new and complete with the full warranty.
- Frequency Response: 45 Hz - 30 kHz
- Impedance (Nominal): 6 ohms
- Sensitivity (1W@1M): 90 dB
- Maximum SPL 111.6 dBA
- Power Handling (RMS): 120 W
- Recommended Amp: 30 - 120 W
- Drivers Unit Complement:
- 8” C-CAM® cone bass driver featuring RST® 2 x 1”
- C-CAM® fixed angle gold dome tweeters
- Adjustment Controls HF Level Switch:
- ( +3dB / 0dB / -3dB )
- Bi pole / Di pole Switch with Additional 12v Trigger Switching
- Fixing Type: 3 position Tri-Grip® dog leg fixings
- Construction Material: Mineral Filled ABS Plastic
- (UL V0 Fire Retardent, RoHS2 Compliant)
- Pre-Construction Bracket: CB8 (Green)
Overall Diameter: (inc grille) 285 mm
Overall Depth: (inc grille) 160 mm
Cut Out Diameter: 247 mm
Mounting Depth: 156 mm
Weight: 3.2kg (7lb)
