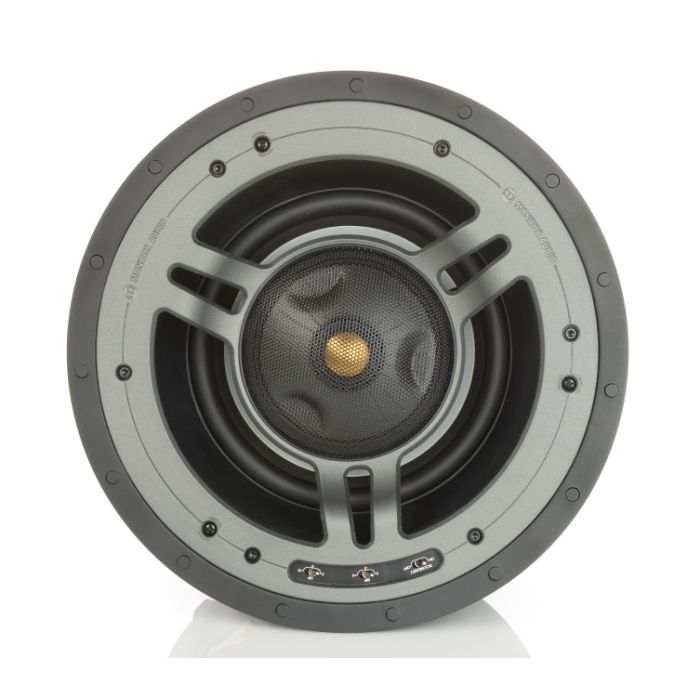

Monitor Audio CP-CT380-IDC Cinema Ceiling Speaker
Monitor Audio CP-CT380-IDC 8" Cinema Ceiling Speakers incorporate Monitor Audio’s innovative, pivoting Inverted Dual Concentric (IDC) midrange/tweeter module and 8” RST C-CAM bass driver, the three-way CP-CT380IDC represents the highest level of new CP performance. The IDC module houses a 4” C-CAM inverted midrange driver surrounding a 25mm C-CAM gold dome tweeter. The entire mid/tweeter unit can be pivoted and directed towards the listening space to provide optimal imaging with excellent midrange and high frequency detail. Improved driver specialisation, higher efficiency and power handling, and greater directivity combine in the three-way models to deliver an enhanced bass foundation for a naturally coherent response up to 30kHz.
- Pivoting module consisting of IDC midrange driver and C-CAM gold dome tweeter.
- C-CAM bass driver featuring Rigid Surface Technology (RST).
- High overall efficiency.
- High frequency level adjustment (+/-3dB).
- Midrange frequency level adjustment (+/-3dB).
- Boundary compensation controls.
- Our innovative Tri-Grip® fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
- Magnetic and easily removable steel grille.
- Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
- Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.
Monitor Audio Warranty:
Monitor Audio Custom Installation Speaker Series carry a Lifetime Warranty
We are authorised Monitor Audio retailers. Brand new and complete with the full warranty.
- Frequency Response: 50 Hz - 25 kHz
- Impedance (Nominal): 6 Ohms
- Sensitivity (1W@1M): 89 dB
- Maximum SPL: 109.6 dBA
- Power Handling (RMS): 120 W
- Recommended Amp: 30 - 120 W
- Crossover Frequency / Slope: 2.5 kHz @ 12 dB / Octave
- Drivers Unit Complement: 3-Way
- 8” C-CAM® RST® cone bass driver
- 4" C-CAM® IDC cone mid range driver
- 1” C-CAM® pivoting gold dome tweeter
- (tweeter & midrange driver combined in a pivoting module)
- Adjustment Controls: HF Level Switch:
- ( +3dB / 0dB / -3dB )
- Boundary Compensation Switch
- Fixing Type: 3 position Tri-Grip® dog leg fixings
- Construction Material: Mineral Filled ABS Plastic (RoHS2 Compliant)
- Pre-Construction Bracket: CB10 (Light Brown)
- Cable Connection: Gold plated 'push' type terminals
Overall Diameter (inc grille): 309 mm
Overall Depth: (inc grille) 187mm
Cut Out Diameter: 274mm
Mounting Depth: 172.80mm
Weight: 4.34kg (9lb 8oz)
