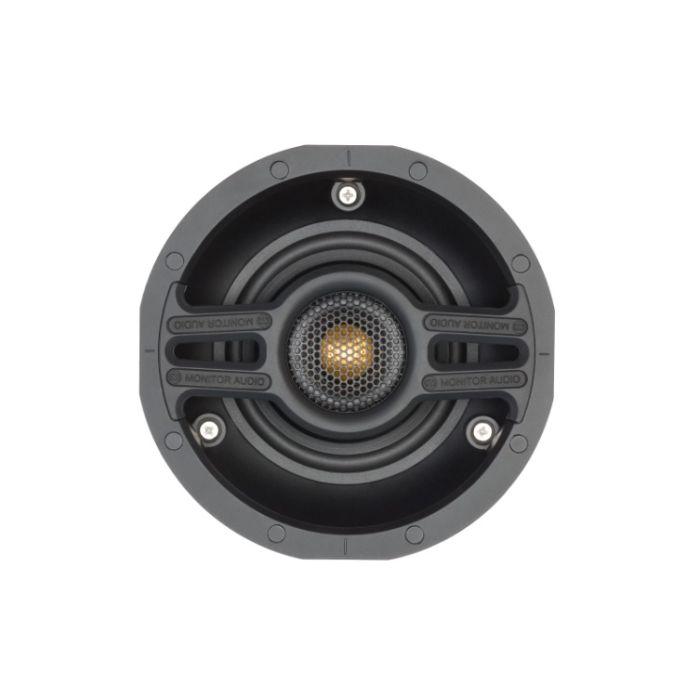

Monitor Audio CS140 Low Profile Ceiling Speaker
Monitor Audio CS140 Low Profile Ceiling Speakers - benefit from recent design refinements and with 15 degrees of play in all directions, the tweeter's higher resolution output can be directed for ideal imaging and reduced in-room reflections. The 4-inch driver features Monitor Audio's proprietary MMP II cones coupled with a pivoting version of our acclaimed C-CAM gold dome tweeter. Between the drivers, a simple crossover design of high-grade audiophile components ensures a smooth transition from dynamic rhythmic lows to finely detailed highs, completing a naturally clean and wide response. By specifying a Round or a Square grille option, Trimless series has been designed to complement any décor.
For the finishing touch, trimless grilles are held in place magnetically by high power neodymium magnets. The CS range offers a choice of interchangeable round or square grilles, and for the right look in any environment, all CS grilles are paintable: a paint mask and additional scrim material is provided to help make painting trouble-free.
All CS models use fire retardant materials specified to U.L rating, are splash and humidity proof, and feature dust protection covers that are designed to prevent the ingress of loose building materials or dust into the driver and crossover network.
Monitor Audio Warranty:
Monitor Audio Custom Installation Speaker Series carry a Lifetime Warranty
We are authorised Monitor Audio retailers. Brand new and complete with the full warranty.
- Frequency Response 75Hz - 30kHz
- Impedance (nominal) 6 ohms
- Sensitivity (1W@1M) 85dB
- Maximum SPL (single unit in free space) 102.8 dBA
- Power Handling (R.M.S) 50 W
- Recommended Amp Requirements 10 - 50 W
- Drive Unit Complement:
- 1 x 4” MMP®II
- cone bass driver.
- 1 x 1” (25mm) C-CAM®
- pivoting gold dome tweeter
- Acoustic Configuration 2 Way
- Fixing Type 3 position Tri-Grip® dog fixings
- Cable Connection Gold plated ‘push’ type terminals
- Grille Attachment Magnetic
- Construction Material Mineral filled ABS (UL94-V0 rated, RoHS compliant)
- Pre-Construction Bracket CB4 (Pink)
Square: 176.7 x 176.7mm
Mounting Depth 98.6mm
Cut-out Hole Diameter 149mm
Weight 1.18kg (2.6lb)
