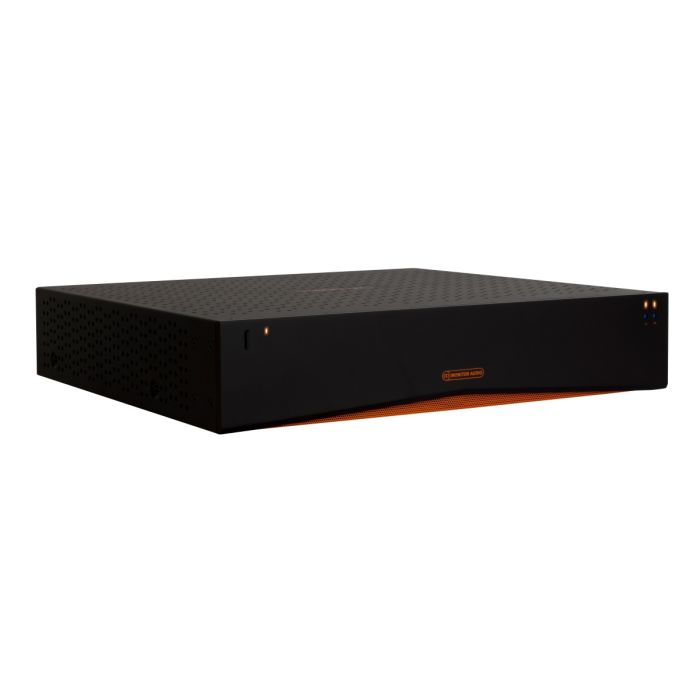

Monitor Audio IA800-2C Connect Amplifier
Out of stock
SKU
IA800-2C
Model Being Discontinued - New Model Due Soon
Please Call Or Email For More Information?
Monitor Audio IA800-2C Connect Amplifier. The IA800-2C is part of our Connect Amplifiers division, bringing our Connect IP interface, a web application which can be accessed by any device connected to the internet with a web browser on the same network.
Fluently delivering up to 800 watts per channel, this two-channel powerhouse can directly drive 70 V line speakers without a line matching transformer. Each channel has a volume adjustment on the front panel and the 2U high case universally fit into most racks whilst delivering 93% energy efficiency. And even though its likely to live its live on the rack, our design team have produced an especially handsome Installation Amplifier. Ready and waiting for any project.
Works with –
Monitor Audio Warranty:
Monitor Audio Amplifiers carry a 5 Year Warranty
'Connect' IP Control
Yes
Channel Number
2 (1 Stereo Pair)
Power (W / Channel) | 4 ohms
800 W
Power (W / Channel) | 8 ohms
500 W
Power (W / Channel) | Bridge (8 ohms)
2000 W (1CH)
Power (W / Channel) | 70V
800 W (2CH)
Input Impedance
20 K ohms
Output Impedance (Loop RCA)
600 ohms
Input Sensitivity
100 mV / 1 W, 2200 mV – Full power
Maximum Input Voltage
2.9 V
Signal to Noise (SN:R)
-100 dB (20 Hz – 20 kHz)
Frequency Response
5 Hz – 50 kHz
Total Harmonic Distortion THD + N@1 KHz
0.03%
Rack Height
2U
IP Communication
TCP/IP (RJ-45 10/100 Base T)
Mains Operating Voltage
100 –120 V @ 60 Hz
220 – 240 V @ 50 Hz
Fuse Rating
15 A (T15AL ~ 250VAC)
Standby Power Consumption
<0.5 W (green mode)
Networked Standby Power Consumption
<2 W
Dimensions (Without Feet (H x W x D))
86.8 x 438 x 438 mm (37/16x 171/4 x 1613/16")
Height (with feet)
97.2 x 438 x 438 mm (313/16x 171/4 x 1613/16")
Width (including rack brackets)
482 mm (19")
Weight
9.2 kg (20 lb 4 oz)
