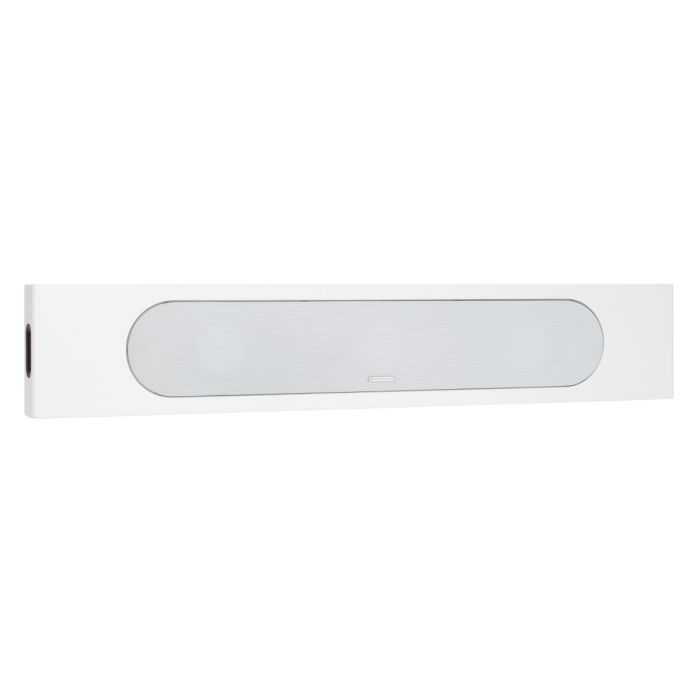

Monitor Audio Radius One Speaker
Monitor Audio Radius One Passive Compact Soundbar. The Radius One incorporates a string of C-CAM® drivers arranged in three sets of 100mm (4”) bass driver/ 25mm (1”) tweeter pairings, each with its own dedicated reflex-ported chamber. The innovative shallow-profile drivers introduced by the new Radius series allow us to generate the triple impact of left, centre and right channels from a cabinet that's 40% smaller than its predecessor.
Key features at a glance:
- New 4” C-CAM® bass driver - Radius features all new bass drivers with concave cone profiles, introduced by our top-of-the-range Platinum speakers and applied subsequently to Gold GX. Extensive research and FEA modelling have allowed us to perfect the relationship between the new radiating diaphragm and its motor design, introducing larger motor sizes and voice coils for increased excursion, higher power capability and reduced distortion.
- New C-CAM gold dome tweeter - optimised to deliver the finest and widest performance within the compact Radius cabinets. It benefits from a more efficient rear-venting design, releasing air trapped and compressed at the back of the tweeter dome, and guiding it around the drive assembly to a rear-loading chamber.
- Single through-bolt driver fixing provides mechanical de-coupling and enhanced mid-band clarity and resolution. The through-bolts also act as rigid cross bracing to give a very solid non-resonant cabinet.
- Wall mounting bracket Included
Monitor Audio Radius Warranty:
Monitor Audio Radius Speakers carry a 5 Year Warranty
90Hz - 35KHz
Power Handling Single (RMS)
System Power Handling (RMS)
Recommended Amplifier Requirements
Maximum SPL (dBA)
C:Bass reflex - Front ported L/R:Bass reflex - Side ported
3 x 4” (100mm) C-CAM cone bass/mid driver
3 x 1” (25mm) C-CAM gold dome tweeter
Cabinet Dimensions (H x W x D)
175 x 980 x 67mm
(67/8 x 389/16 x 25/8 Inches)
Cabinet Dimensions (H x W x D) (Inc Grille & Terminals)
175 x 980 x 79mm
(67/8 x 389/16 x 31/8 Inches)
7.4kg (16lb 4oz)
