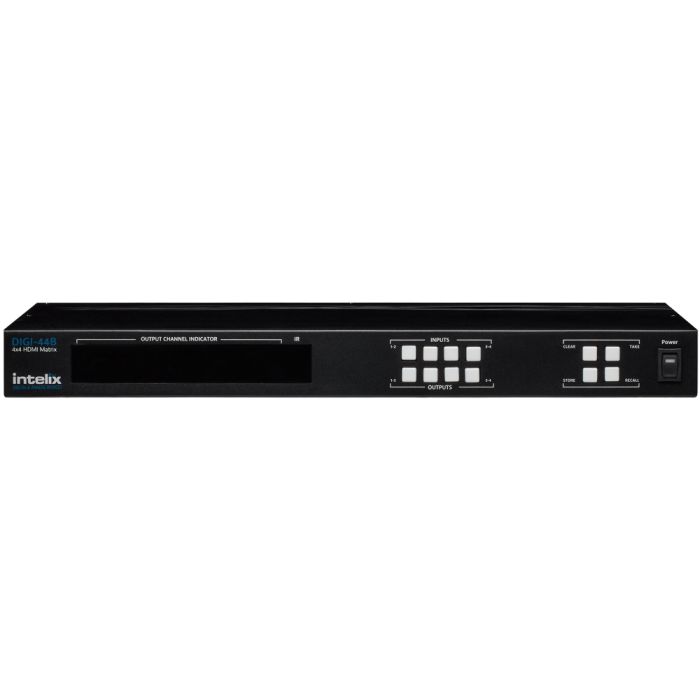

Intelix 'DIGI-44B' HDMI/HDBaseT Matrix Switcher - 4 Input x 4 Output
SRP:
£1,795.00
(£1495.83 + VAT)
In stock
SKU
DIGI-44B
Intelix 'DIGI-44B' HDMI/HDBaseT Matrix Switcher - 4 Input x 4 Output
The Intelix DIGI-44B is a four input by four output HDBaseT/HDMI matrix switcher. The Intelix DIGI-44B matrix improves the ease of installation similar to previous Intelix HDMI matrix switchers.
The DIGI-44B has dual outputs on each output port, allowing the same signal to be routed to the HDMI connector and a remote destination with an HDBaseT receiver. The HDBaseT ports support 1080p HDMI video with audio, bi-directional wide-band IR, matrix control via IR, and HDCP. The matrix is HDMI compatible and supports up to 2K resolutions, Deep Color, and full 3D capabilities.
The DIGI-44B can be controlled via front panel buttons, front panel IR, external IR, remote IR through HDBaseT extenders, RS232, and Ethernet. The matrix includes a simple IR remote control to allow IR switching. This IR remote control can be learned into universal remotes and IR based control systems. The matrix also features a full command set for RS232 and Ethernet control with third party control systems.
Features & Benefits
- 4 HDMI input by 4 HDMI output + 4 HDBT outputs
- HDMI & HDCP compliant
- Supports 1080p / 1080i / 3D / All HDMI Audio (No ARC)
- Bidirectional Wideband InfraRed (IR) signal distribution
- Control via front panel, IP, RS-232, or IR protocols
- 4 Routing presets activated from front panel
- Rack-Mount and Bottom Panel Feet included
- Includes wireless remote control, IR eyes, and IR emitters
Applications
- HDMI multimedia switching and distribution
- 1080p up to 70m (230 ft) over standard Cat cable with compatible receive units
- Digital signage, restaurant and bar, residential HDMI
| Product Line: | DIGI-44B | |||||
|---|---|---|---|---|---|---|
| I/O Connections | ||||||
| HDMI Inputs | Four (4) HDMI Type A Receptacle (1 per input) | |||||
| HDMI Outputs | Four (4) HDMI Type A Receptacle (1 per output) | |||||
| HDBaseT Outputs | Four (4) 8P8C port (Shielded RJ45) (1 per output) | |||||
| IR Input | Four (4) 3.5 mm jack (TRS) (1 per input) | |||||
| IR Output | Four (4) 3.5 mm jack (TS) (1 per output) | |||||
| IR Extension Input | One (1) 3.5 mm jack (TRS) | |||||
| 12V DC Power | One (1) 5.5 mm Outside Diameter, 2.1 mm Inside Diameter Barrel | |||||
| Control, Rear Panel | RS232 via DE-9, TCP/IP via 8P8C, IR via 3.5mm TRS | |||||
| Control, Front Panel | Push Button, IR | |||||
| DIP Switch | Three switch DIP | |||||
| Supported Audio, Video, and Control | ||||||
| HDTV Video Resolutions | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p | |||||
| VESA Video Resolutions | Up to 1920x1200 | |||||
| Maximum Video Compatibility at 70 m | Deep Color 36/30/24 Bit at 1080p | |||||
| Maximum Video Compatibility at 40 m | Deep Color 48 Bit at 1080p and 3D | |||||
| Supported 3D Formats | Field Alternative (interlaced), Frame Packing, Line Alternative Full, Side-By-Side Half, Side-By-Side Full, 2D + Depth, 2D + Depth + Graphics + Depth | |||||
| DIP Switch Modes | 1080i/2.0, 1080p 3D/2.0, 1080p/2.0, 1080p/5.1, 1080p/7.1, Copy and Use EDID from Display | |||||
| Video Compliance | HDMI, HDCP, and CEC (Consumer Electronics Control) | |||||
| Embedded Audio | Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio | |||||
| Input DDC Signal | 5.0 volts p-p (TTL) | |||||
| Input Video Signal | 0.5 to 1.0 volts p-p | |||||
| IR Carrier Frequency Range | 33-55kHz at 5 volts | |||||
| Ethernet | 100BaseT | |||||
| RS232 Baud Rate | 9600 baud | |||||
| HDBaseT Signal Characteristics | ||||||
| Maximum Distance | 70 m | |||||
| Cable Requirements | Solid core shielded Category 5e, Category 6 or greater with TIA/EIA-568B crimp pattern | |||||
| Bandwidth | 10.2 Gbps | |||||
| Gain | 0 dB – 10 dB at 100 MHz | |||||
| Signal to Noise Ratio (SNR) | > 70 dB at 100 MHz over 100 m | |||||
| Return Loss | < -30 dB at 5 KHz | |||||
| Total Harmonic Distortion (THD) | < 0.005% at 1 KHz | |||||
| Min-Max Signal Level | < 0.3 V – 1.45 Vp-p | |||||
| Differential Phase Error | ±10° at 135 MHz over 100 m | |||||
| Chassis and Environmental | ||||||
| Enclosure | Painted Steel | |||||
| Dimensions | 440 mm x 230 mm x 44 mm (17.32 in x 9.06 in x 1.73 in) | |||||
| Rack Spacing | 1 RU | |||||
| Shipping Weight | 3.72 kg (8.2 lbs) | |||||
| Operating Temperature | 0° to +40° C (+32° to +104° F) | |||||
| Operating Humidity | 20% to 90%, Non-condensing | |||||
| Storage Temperature | -10° to +60° C (+14° to +140° F) | |||||
| Storage Humidity | 20% to 90%, Non-condensing | |||||
| Power, ESD, and Regulatory | ||||||
| Power Supply Input | 100V-240VAC / 1.8A | |||||
| Power Supply Output | 12V DC / 5A | |||||
| Power Consumption | 60 watts (max) | |||||
| ESD Protection | 15kV | |||||
| DIGI-44B Regulatory | CE, RoHS | |||||
| Power Supply Regulatory | UL, FCC, CCC, CE, RoHS | |||||
| Other | ||||||
| Warranty | 2 years | |||||
| Diagnostic Indicators | LED output status and power LED | |||||
| Included Accessories | Installation Guide, IR Remote, IR Emitter (4 ea), IR Receiver (4 ea), USB/RS232 adaptor, US Power Cable and Power Supply, Mounting Brackets with screws, Chassis Feet | |||||
| Compatible Receivers (A/V Only) | DIGI-HD70-R | |||||
| Compatible Receivers (A/V and IR) | DIGI-HDE-R, DIGI-HD60C-R | |||||
