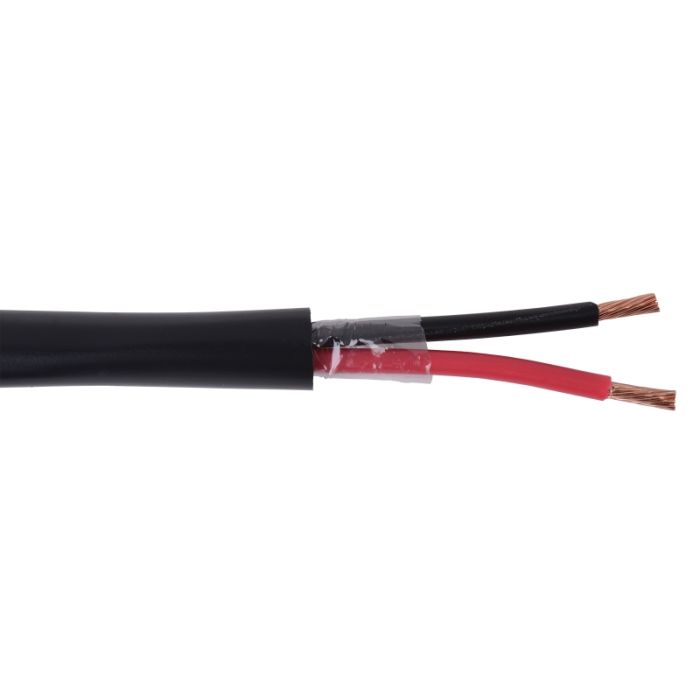

Liberty (16-2C-DB) DIRECT BURIAL CL3 2-Core Speaker Cable 1000ft / 305m
SRP:
£349.00
(£290.83 + VAT)
In stock
SKU
16-2C-DB
Liberty (16-2C-DB) DIRECT BURIAL CL3 2-Core Speaker Cable 1000ft / 305m
Features & Benefits
- 19-strand annealed bare copper conductors
- Low density polyethylene insulation
- Twisted, unshielded
- UV stabilized PVC jacket
- NEC CL3, direct burial, sunlight resistant, RoHS compliant
- 1000 foot spools
Applications
- Outside Plant Speaker Level Audio
- 70 volt Speaker cabling
- Low voltage lighting
- Class 2 and Class 3 low voltage power
- Instrumentation and Control
| Description | 2 conductor 16 AWG stranded, twisted, and unshielded cable NEC type CL3, Suitable for Direct Burial and Sunlight Resistant. Product manufactured compliant to the requirements of UL13 for installations and applications in accordance with NEC article 725. |
| Conductor | 16 AWG 19-strand annealed bare copper conductors Diameter: 0.056" | 1.42mm |
| Electrical | DC resistance: 4.38 Ω / 1000’ | 14.36 Ω/KM Mutual capacitance: 20.4 pF/FT | 66.9 pF/M Impedance: 76 Ω Inductance: 0.16µH/FT | 0.52µH/M Velocity of Propagation: 66% Voltage rating: 300V Maximum current: 6.25A@25°C |
| Insulation | Polyethylene Wall thickness: 0.008" | 0.20mm Diameter: 0.075" | 1.91mm |
| Regulatory | NEC: CL3 75°C Suitable for direct burial Sunlight resistant EU RoHS-2 2011/65/EU Compliant |
| Color Code | Black, Red |
| Packages | Reel: 1000’ | 305M Weight: 42 Lbs/1000’ | 63 Kg/KM |
| Assembly | 2 conductors twisted Lay length: 4.0" | 100mm 3.0 twists per foot | 10.0 twists per meter |
| Installation | Pull Tension: 39 Lbs | 174 N Bend radius: 2.40" | 61mm unloaded Bend radius: 4.80" | 122mm loaded |
| Construct | 100% Mylar tape binder |
| Applications | General purpose and Outside plant speaker level audio Outside plant 70V commercial speaker audio Outside plant rated Class 2 and 3 power |
| Shield | N/A |
| Performance | Speaker level audio to 50 feet |
| Jacket | Flame rated polyvinyl chloride Colors: Black Wall thickness: 0.045" | 1.14mm Diameter: 0.240" | 6.10mm |
| Final Outside Diameter (inches) | 0.24 |
