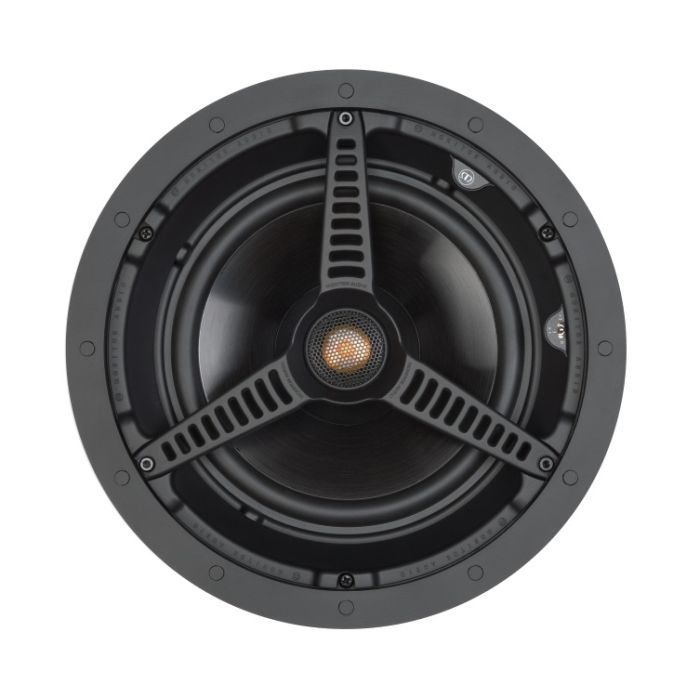

Monitor Audio C180 Ceiling Speaker
Monitor Audio C180 Ceiling Speakers incorporate an 8-inch MMPII bass driver with Monitor Audio’s signature C-CAM gold dome tweeter to provide high performance sound, ease-of-drive, and wide frequency response and dispersion. Optimum imaging and set-up are established via a pivoting tweeter and high-frequency (+3dB / 0dB /-3dB) level adjustment.
- 2-way design with pivoting C-CAM tweeters (15 degrees of play).
- High overall efficiency.
- High frequency level adjustment (+/-3dB).
- Audio match with BR-CP, Radius-CP, Climate 10 and Bronze BR and Radius Series hi-fi speakers.
- Our innovative Tri-Grip® fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
- Magnetic and easily removable steel grille.
- Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
- Fire retardant to UL-94 VO rating.
- Splash and humidity proof for installation in shower room or pool areas.
- Features dust protection cover that is designed to prevent the ingress of dirt or dust into the driver and crossover.
Monitor Audio Warranty:
Monitor Audio Custom Installation Speaker Series carry a Lifetime Warranty
We are authorised Monitor Audio retailers. Brand new and complete with the full warranty.
Freq Response: 50 Hz - 25 kHz
Impedance (Nominal): 6 ohms
Sensitivity (1W@1M): 90 dB
Maximum SPL 111.6 dBA
Power Handling (RMS): 120 W
Recommended Amp: 30 - 120 W
Drivers Unit Complement:8” MMP®II cone bass driver
1” C-CAM® pivoting gold dome tweeter
Adjustment Controls HF Level SwitchFixing Type: 3 position Tri-Grip® dog leg fixings
( +3dB / 0dB / -3dB )
Construction Material: Mineral Filled ABS Plastic
(UL V0 Fire Retardent, RoHS2 Compliant)
Pre-Construction Bracket: CB6 (Green)
Overall Dia: (inc grille) 285 mm
Overall Depth: (inc grille) 125 mm
Cut Out Dia: 247 mm
Mounting Depth:121 mm
