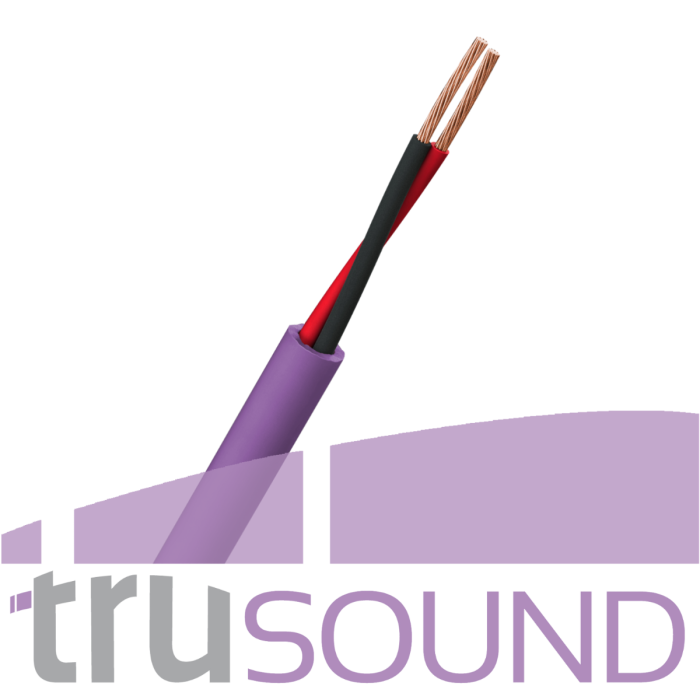

TruSound LSZH Professional Grade OFC 16/2 Speaker Cable

TruSound LSZH Professional Grade OFC 16/2 Speaker Cable

Developed from the American market these cables use 2 core 16AWG oxygen free copper conductors for optimum sound quality.

Clearly identified by their distinctive colour and printing, they are widely used in commercial and high-end residential installations.

16AWG Multicore LSHF speaker cables. Oxygen free copper conductors, features a quick strip jacket for easy installation.

Construction
Conductor Material : 99.999% Oxygen Free Bare Copper
Number of Strands : 41/0.2mm
Insulation Material : Low Smoke Halogen Free (LSHF)
Sheath Material : Low Smoke Halogen Free (LSHF)
Sheath Colour : See Table
Core Identification : 2 Core – Red & Black

Electrical Characteristics
Nominal Conductor Resistance : < 13.7 Ω/km
Insulation Resistance : > 200 MΩ.M
Voltage Rating : 450/750V
Test Voltage : 2.5kV for 5 Minutes

Physical Characteristics
Overall Diameter : 6.1mm
Min. Bend Radius : 10 x OD
Temperature Rating : 0°C to +70°C

Standards
RoHS2 Complaint : Yes
CE Compliant : LVD (2014/35/EU), CPR (305/2011)
CPR Classification : ECA (EN50575:2014+A1:2016)

TruSound Warranty:
TruSound speaker cable carries a full manufacturers warranty.
