Digitalinx DL-DA18 HDMI Distribution Amp with 4k Support (1 IN 8 OUT)

Digitalinx DL-DA18 HDMI Distribution Amp with 4k Support (1 IN 8 OUT)

HDMI Distribution Amp with 4k Support - 1 Input x 8 Output

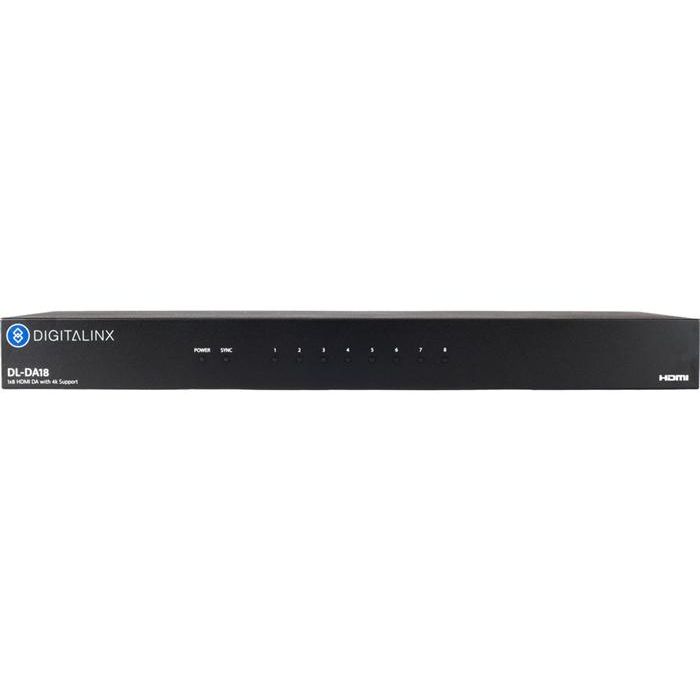

The Digitalinx DL-DA18 is a one input to eight output HDMI distribution amplifier (DA). The DL-DA18 supports supports 3D and 4K video resolutions as well as multichannel audio formats.

The EDID settings for the DL-DA18, either 1080p with stereo audio or the EDID of the display on Output 1, are configured by a switch on the rear of the DA. The DL-DA18 features diagnostic LEDs on the front of the product indicating the state of the connections into and out of the unit. The CEC switch on the rear of the DA will send a switch to input 1 command to displays that support CEC if the swich is activated.

Features & Benefits

• HDMI v1.4, HDCP 1.1 and DVI 1.0 Compliant
• Allows distribution of 8 Outputs
• Locking power connector
• Supports 3D, 4Kx2K, and Deep Color
• Automatic Discovery of Monitor EDID

Applications

• HDMI multimedia distribution
• Digital signage, restaurant and bar, residential HDMI
