Liberty (16-4C-DB) DIRECT BURIAL CL3 4-Core Speaker Cable 1000ft / 305m

SRP: £574.00 (£478.33 + VAT)

Out of stock

SKU

16-4C-DB

Skip to the end of the images gallery

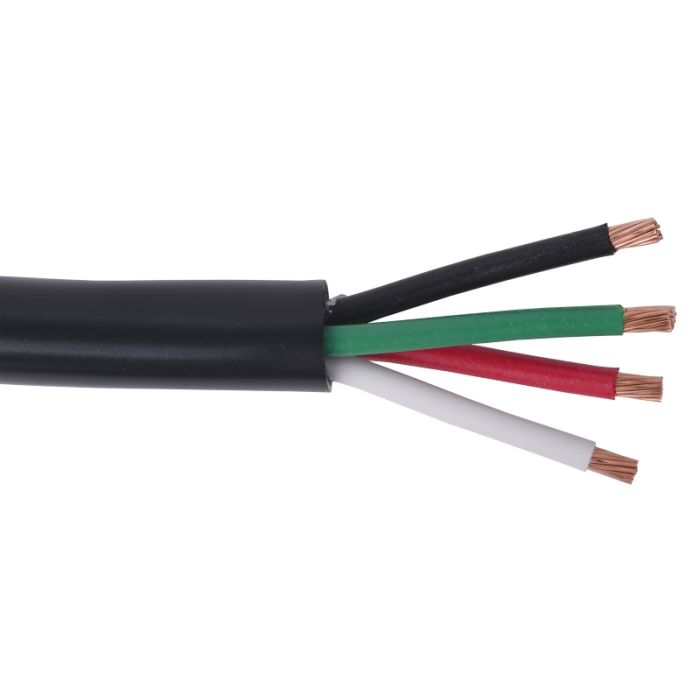

main product photo

Skip to the beginning of the images gallery

Liberty (16-4C-DB) DIRECT BURIAL CL3 4-Core Speaker Cable 1000ft / 305m

Features & Benefits

19-strand annealed bare copper conductors
Low density polyethylene insulation
Twisted, unshielded
UV stabilized PVC jacket
NEC CL3, direct burial, sunlight resistant, RoHS compliant
1000 foot spools

Applications

Outside Plant Speaker Level Audio
70 volt Speaker cabling
Low voltage lighting
Class 2 and Class 3 low voltage power
Instrumentation and Control

Description	4 conductor 16 AWG stranded, twisted, and unshielded cable NEC type CL3, Suitable for Direct Burial and Sunlight Resistant. Product manufactured compliant to the requirements of UL13 for installations and applications in accordance with NEC article 725.
Conductor	16 AWG 19-strand annealed bare copper conductors Diameter: 0.058" \| 1.47mm
Electrical	DC resistance: 4.38 Ω / 1000’ \| 14.36 Ω/KM Mutual capacitance: 20.4 pF/FT \| 66.9 pF/M Impedance: 76 Ω Inductance: 0.16µH/FT \| 0.52µH/M Velocity of Propagation: 66% Voltage rating: 300V Maximum current: 5.0A@25°C
Insulation	Polyethylene Wall thickness: 0.008" \| 0.20mm Diameter: 0.074" \| 1.88mm
Regulatory	NEC: CL3 75°C Suitable for direct burial Sunlight resistant EU RoHS-2 2011/65/EU Compliant
Color Code	Black, Red, White, Green
Packages	Reel: 1000’ \| 305M Weight: 61 Lbs/1000’ \| 91 Kg/KM
Assembly	4 conductors twisted Lay length: 4.0" \| 100mm 3.0 twists per foot \| 10.0 twists per meter
Installation	Pull Tension: 78 Lbs \| 347 N Bend radius: 2.74" \| 70mm unloaded Bend radius: 5.48" \| 140mm loaded
Construct	100% Mylar tape binder
Applications	General purpose and Outside plant speaker level audio Outside plant 70V commercial speaker audio Outside plant rated Class 2 and 3 power
Shield	N/A
Performance	Speaker level audio to 50 feet
Jacket	Flame rated polyvinyl chloride Colors: Black Wall thickness: 0.045" \| 1.14mm Diameter: 0.274" \| 6.96mm
Final Outside Diameter (inches)	0.274
