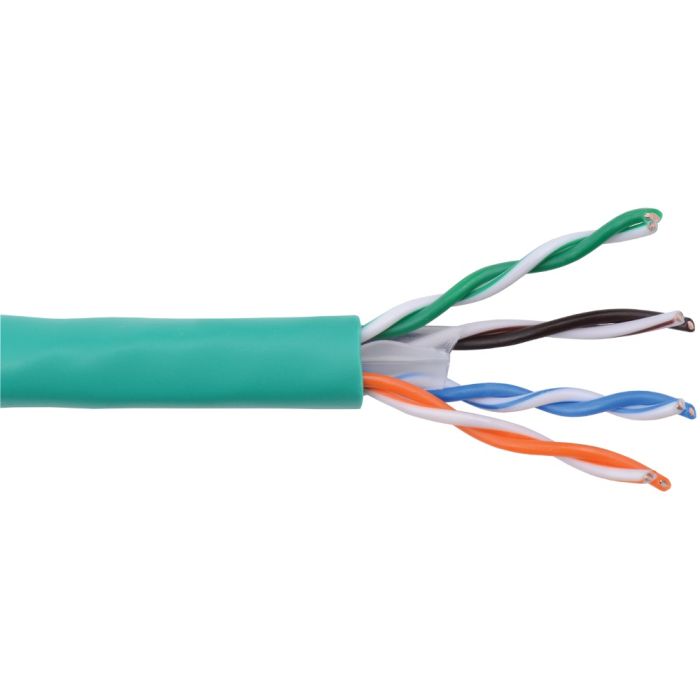

Liberty (24-4P-L6-HT) Hometrax CAT6 Data Cable 1000ft
SRP:
£142.00
(£118.33 + VAT)
Out of stock
Only %1 left
SKU
24-4P-L6-HT
Liberty (24-4P-L6-HT) Hometrax CAT6 Data Cable 1000ft
Features and Benefits
- HomeTrax economy grade U/UTP cabling
- Solid annealed bare copper conductors
- High density polyethylene insulation
- 4 pairs twisted in varying lays and cabled
- Flame rated PVC jacket
- TIA/EIA-568-C Category 6
- NEC CMR, CEC CMR FT4, RoHS compliant
- 1000 foot nested boxes
Applications
- Horizontal LAN 10/100/1000BaseT ethernet
- Audio, video, infrared, IP control
- Balun infrastructure, voice, voice over IP
- PoE, HDBaseT, analog and digital media
| Description | 4 pair 23.5 AWG solid, twisted, and unshielded cable NEC type CMR and CEC type CMR FT4. Third party verified to ANSI/TIA-568C Category 6 performance. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800. |
| Conductor | Cat 6: 24 AWG Solid annealed bare copper conductors Diameter: 0.021" | 0.525mm |
| Electrical | DC resistance: ≤ 28.6 Ω / 1000’ | 93.8 Ω/KM DCR Unbalance: ≤ 5.0% Capacitance: 17.0 pF/FT | 56.0 pF/M Impedance: 100 ± 15 Ω Propagation Delay (Skew): 45ns/100m MAX Velocity of Propagation: 68% Voltage rating: 300V Pair to ground capacitance Unbalance: ≤ 330 pF/100M Maximum current: 1.4A@25°C |
| Insulation | Thermoplastic polyolefin Wall thickness: 0.010" | 0.25mm Diameter: 0.041" | 1.06mm |
| Regulatory | ANSI/TIA-568C Category 6 NEC: CM 60°C CEC: CMG FT4 60°C EU RoHS-2 2011/65/EU Compliant |
| Color Code | Pair 1: Orange, White/orange stripe Pair 2: Blue, White/blue stripe Pair 3: Green, White/green stripe Pair 4: Brown, White/brown stripe |
| Packages | Reel: 1000’ | 305M Weight: Lbs/1000’ | Kg/KM |
| Assembly | Pairs twisted in varyng lay lengths with co-extruded like striped conductor Each pair run in an individual polyethylene X separator section |
| Installation | Pull Tension: 25 Lbs | 111 N Bend radius: 2.24" | 57mm unloaded Bend radius: 4.48" | 114mm loaded |
| Construct | Ripcord under jacket |
| Applications | Riser LAN systems 10/100/1000BaseT Riser Phone, Voice, Video over IP and security video BALUN support and media infrastructure Infrared, audio |
| Shield | N/A |
| Performance | LAN: 300 feet Passive Baluns up to 2500 feet |
| Jacket | Flame rated polyvinyl chloride Colors: Blue, White, Green Wall thickness: 0.022" | 0.56mm Diameter: 0.224" | 5.70mm |
| Final Outside Diameter (inches) | 0.224 |
